Large Opening Retractable Screens

VistaView™ large opening retractable screens are designed for even the biggest of doors and windows. This retractable screen door can cover 29’6” feet easily making it the best screen for bi-fold doors.

Home owners and contractors love using VistaView™ screens for stacker doors, curtain walls, telescoping walls, and lift & slide door systems. This giant screen door is also perfect for screening in decks. Each VistaView is custom made to fit your application.

Applications

applications

Recessed Trackrecessed-track

Request a Quote

Fill out our short request form & get a quote today

Live Large

VistaView™ Retractable Wall Screens lets you relax
and enjoy open concept living.Bring the outdoors in - minus the bugs!

Cover Large Spans

Unobstructed Views

Fresh Air

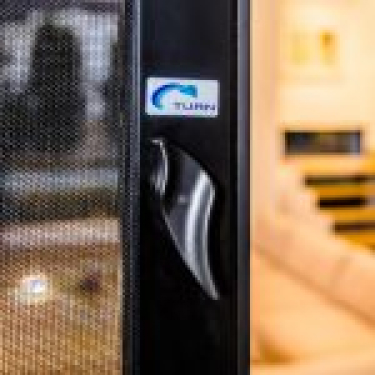

Hand Brake System

Captured Edge

Recessed Track


Expand Your Living Space

Request a Quote Today























Finish Options

Anodized
Black
Bronze
White

Optional Woodgrains

Dark Acacia
Dark Ash
Dark Cedar
Dark Cherry
Dark Fir
Dark Knotty Pine
Dark Mahogany
Dark Oak
Dark Walnut
Light Ash
Light Cedar
Light Cherry
Light Fir
Light Knotty Pine
Light Oak

Mesh Options

Phifer Patio Mesh 18 x 14 (58% Openness)

Designed for applications where extra strength is desired. Ideal for large openings.

Phifer Tuff Screen 17 x 13 (45% Openness 55% UV)

Heavy duty, vinyl-coated polyester insect screening that is ideal for use in high traffic areas. Pet resistant and tear and puncture resistant. Tuff Screen is stronger than regular insect screening. Treated with Microban to prevent the growth of bacteria.

Twitchel Super Mesh Screen 17 x 20 (55% Openness)

Over the years Super Screen has provided innovative technology for multiple applications. SuperScreen offers superior performance charactreristics and is covered by Twitchell's ten year limited warranty. SuperScreen is a vinyl coated - polyester.

Sizing Options

70mm Housing Singles
Standard Mesh: 10’(W) x 10'(H)
70mm Housing Doubles
Standard Mesh: 20'(W) x 10’(H)
80mm Housing Singles
Standard Mesh: 14’9"(W) x 11’3"(H)
80mm Housing Doubles
Standard Mesh: 29’6" (W) x 11’3"(H)


VistaView Sizing Guide

Configuration Options

small-doubled single-right single-left

doubleoffset double-no-offset

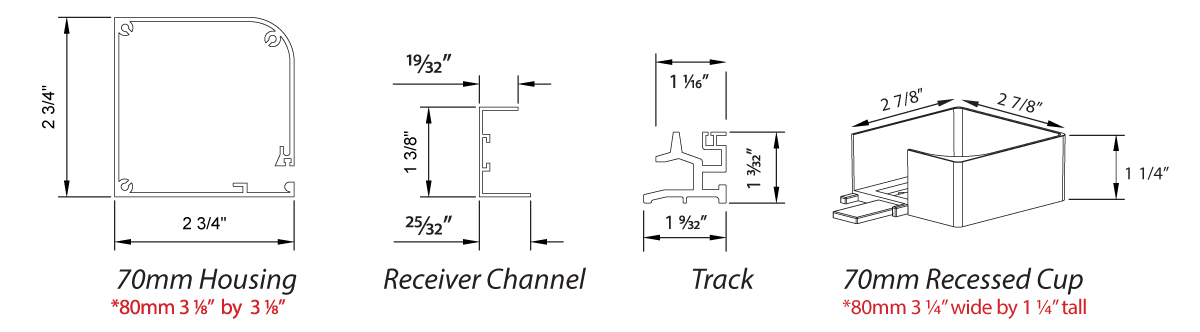

Components

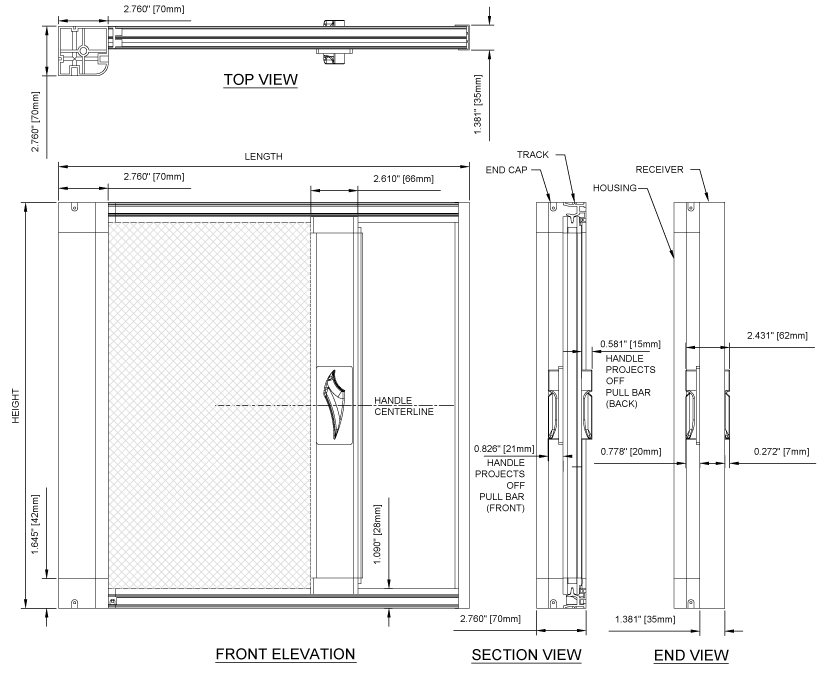

70mm Drawings

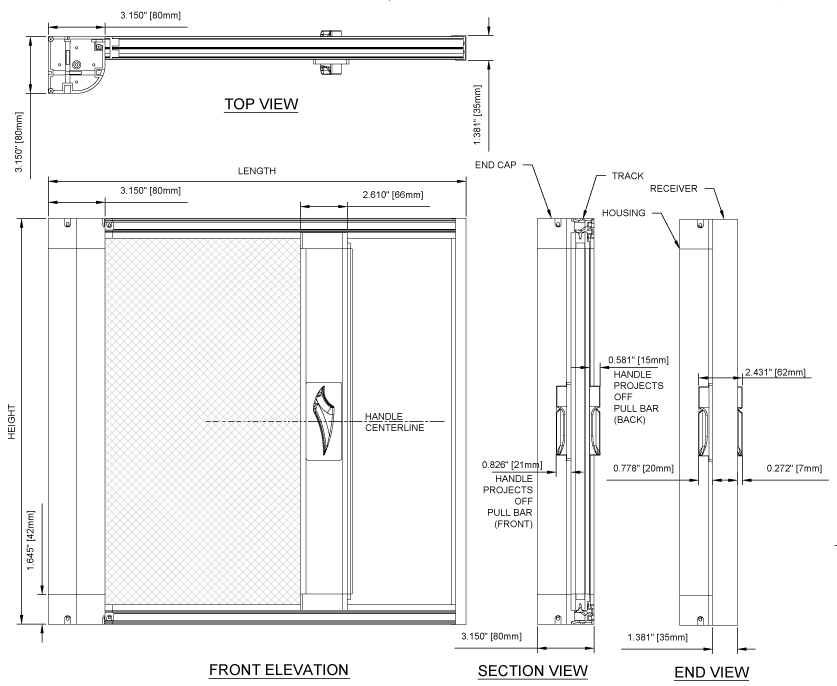

80mm Drawings



Want Access to DWG Files?
Request Access

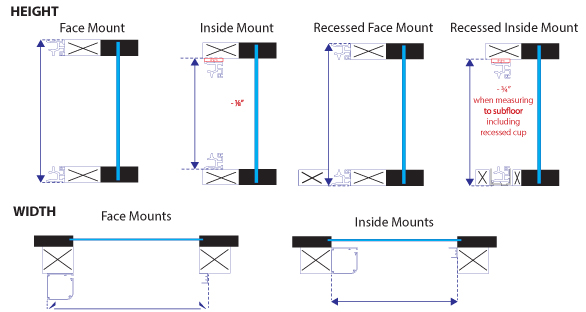

Mounting Options

Identifying Housing Side

Housing side is determined as viewed from front of housing (curved side)



For Your Convenience

We're providing you a PDF of our VistaView brochure. Take a moment to download it so you can print it for your reference.
Download a Brochure



five-year
Wizard Industries Inc. offers a limited 5 year warranty on all components, excluding screen mesh and hardware, to the original purchaser of the VistaView from the date of installation.
Wizard industries Inc offers a limited 1 year warranty from the date of installation on hardware such as hand brake system.

Wizard Screens offers a limited five year warranty on all components, excluding screen mesh, to the original purchaser of the VistaView from the date of purchase.
This warranty is nontransferable and will remain intact for the original purchaser provided the product was installed by an Authorized Dealer and/or factory trained installer and has not been moved or altered in any way.

Wizard warrants the components shall be free of defects in materials and workmanship. “Defects” are defined in this warranty as imperfections that impair the utility of the retractable screen. Wrinkles in the mesh or puckering along its edges in itself does not constitute a defect.

The limited warranty does not include components that have been damaged by misuse, abuse, unauthorized repair or modification, lack of maintenance, normal weathering, fading, scratching, airborne or applied corrosive contaminants, acts ofGod or other causes beyond the control of Wizard Screens.

If a component is defective and you require assistance, please contact your original point of purchase. Please retain your invoice as proof of purchase. Proof of purchase is required for any after sale service.
